Strange 2005-2014 Mustang 8.8 Pro Race Axle Pkg w/C-clip Eliminator Kit and 5/8" Studs P1011F0558

Strange Pro Race axles are forged from Hy-Tuf alloy steel that was originally developed for highly stressed landing gear in military aircraft. The material is in the class of Ultra Strength alloys and contains low carbon, high manganese, high-nickel, and high molybdenum steel. Pro racing axles are thru-hardened allowing for a Drag Racing shaft with an exceptionally high, 240,000 PSI, tensile strength while retaining ductility.

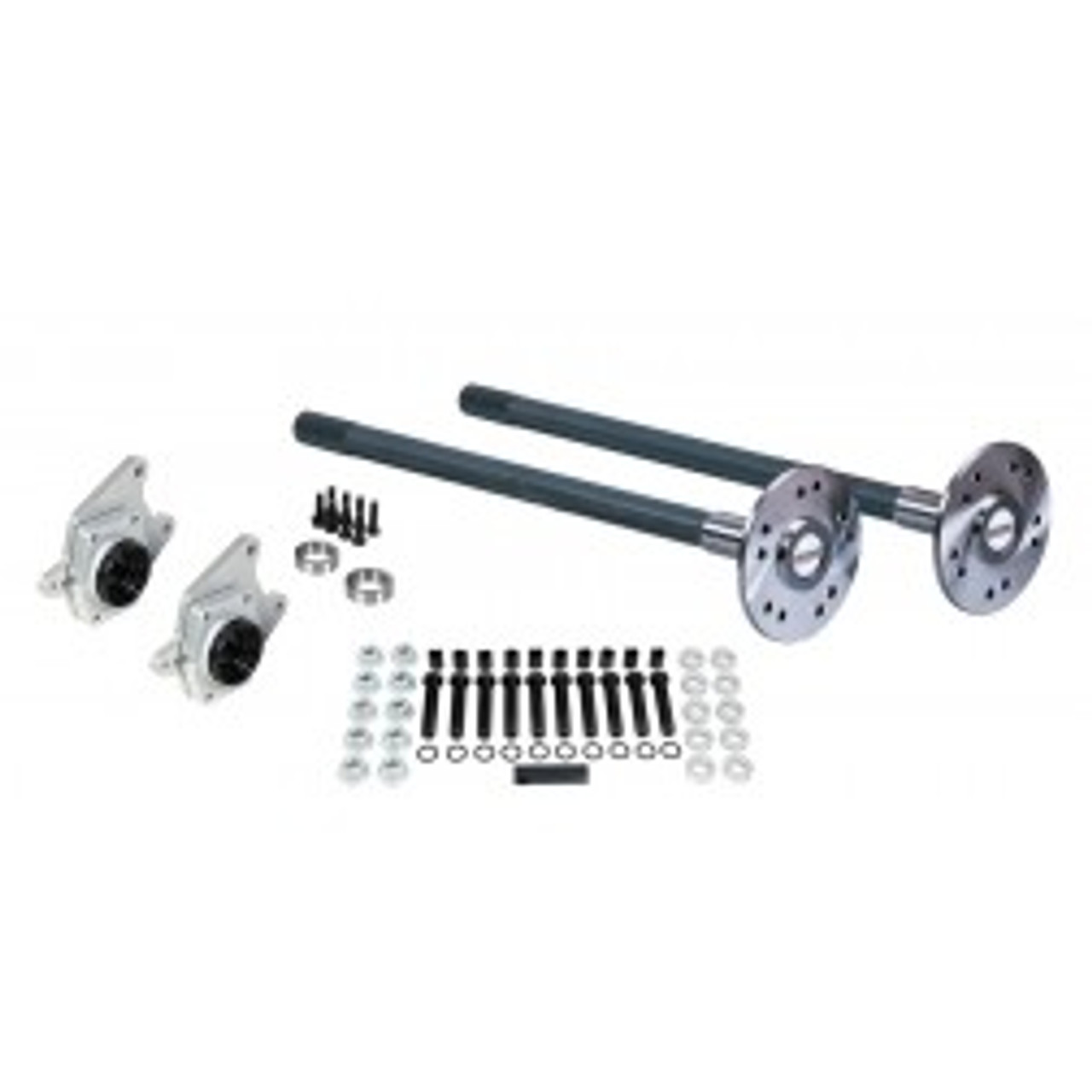

This Pro Race Axle Package includes:

Hy-Tuf Ultra Strength Axles (A1000) - Forged from low carbon, high manganese, high nickel, and high molybdenum steel. Majority of machining performed before heat treat to provide consistent hardness. Thru hardened to Rc 45-48 to maximize the material's torsional strength. Finish machined after heat treat. Choice of 31, 33, or 35 spline. Choice of bolt circle



C-Clip Eliminator Kit (A1099) - Billet aluminum caliper mounts to accept GT brakes, aluminum inner halves, Timken Tapered Unit bearings for long bearing life, bearing spacer/reluctor ring adapters, locking rings, outer seals, o-rings, housing end bolts, and hardened washers for used w/OEM caliper mounting bolts



Choice of 5/8" Bolt Style Stud Kit (A1027S/A1027/A1027L) - 5/8" -18x3" grade 8 fully threaded bolts (measured from underneath the hex of the stud). Thin .200" hex head provides additional clearance. Width choice of ani-marring/spacer washers. Includes threaded sleeves, install tool, and flanged lug nuts





NOTES FOR ABS: This kit will work w/factory reluctor rings. Wheel studs must be installed before ABS rings are pressed-on. Read instructions carefully beforehand as assembly order is CRUCIAL
