Designed Specifically For Drag Racing
Spindles Need To Be Sent-in For Modifications
• Unavailable to be purchased online
• Call to place an order and obtain an RMA number
• This number needs to be included with your sent-in spindles
Application
1969-1982 Corvette
With Disc Brake Spindles

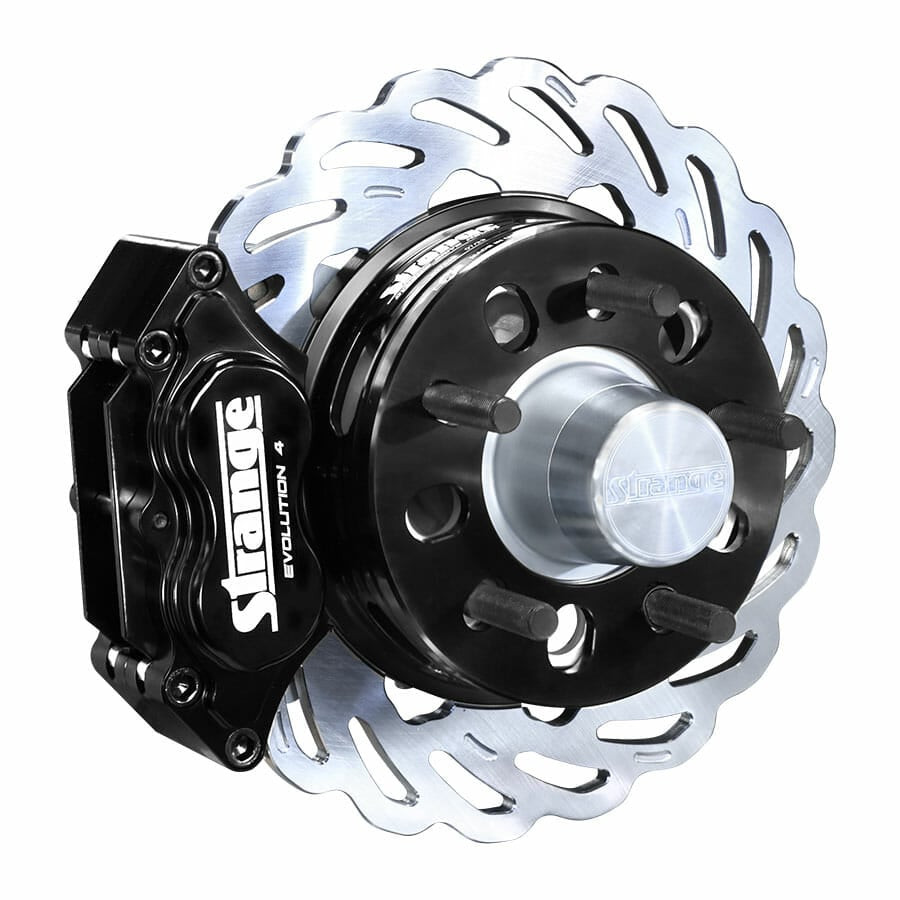

Evolution S Dynamic Drive Mount (DDM) Stainless Steel Rotors – B2798L / B2798R
• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retension designs
• DDM system design is secured by an internal Spirlox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ OD / .355″ thickness
Four Piston Billet Evolution 4 Calipers – B1900
• Stainless steel pistons mitigate heat transfer to brake fluid
• Reverse dish pressure vessel piston maximizes stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Computer finite element analysis (FEA) optimized and field-tested calipers- Evolution 4 design improves piston retraction, pedal feel, and stiffness resulting in improved pad wear and exemplary braking efficiency
• All pistons are 1.750″ for increased clamping force
DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities
Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance
Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals
Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request
All Necessary Mounting Hardware
Need More Wheel Clearance?
Low Profile Caliper Option – OPRB12
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
