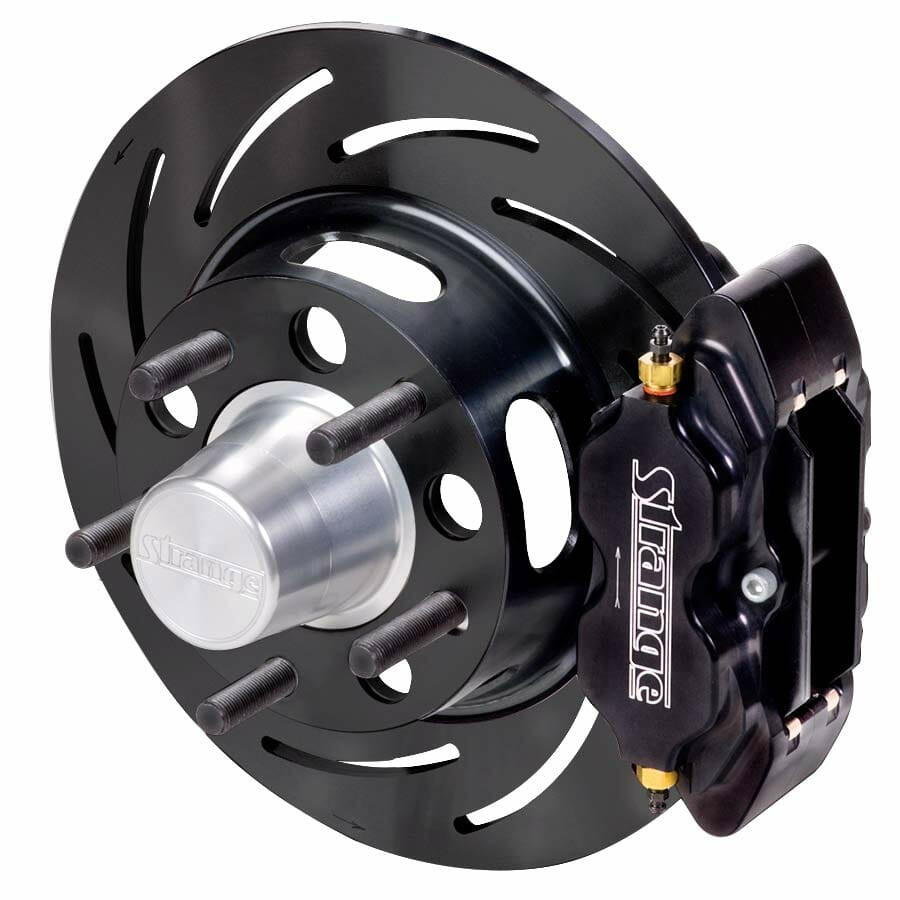

Designed Specifically For Drag Racing
Spindles Need To Be Sent-in For Modifications
• Unavailable to be purchased online
• Call to place an order and obtain an RMA number
• This number needs to be included with your sent-in spindles
Application
1963-1964 Corvette
With Drum Brake Spindles
One Piece Forged Steel Rotors – B2795 / B2796
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight
Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise
DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities
Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance
Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals
Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request
All Necessary Mounting Hardware
Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
