Inside of the supercharger manifold, a large liquid-to-air intercooler keeps your Intake Air Temperatures in check and provides consistent and repeatable performance. Combine that with the front-mounted heat exchanger, electric water pump, and intercooler coolant reservoir and you have a supercharger system with IATs that are typically only 20-40 degrees (Fahrenheit) over the ambient temperature. Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged Camaro SS to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.
Down to the smallest part, our MagnaCharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, fuel injectors, fuel rails, front & rear fuel crossovers, and intercooler come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don’t lose track of parts during your install. All of the hardware needed for a full and complete install is also included so you won’t be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.

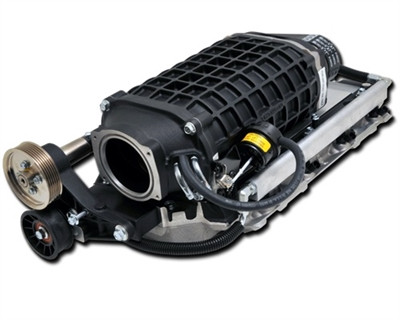

Magnuson’s TVS2300 supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson’s patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors.
Features:
- TVS2300 Hybrid-roots supercharger
- Installs in one day
- 100% complete bolt-on system
- No hood modifications are required
- More power in a smaller package
- 180deg. rotation of the supercharger provides a straight airflow path for maximum power and efficiency
- Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
- Delivers a proven increase in real world "under the curve" power
- High thermal efficiency
- 2.4 pressure ratio capability
- High helix four-lobe rotors with 160deg. of twist
- Redesigned inlet and outlet ports
- Improved air-handling characteristics
- Acoustically designed for noise and vibration reductions
- Utilizes all factory "push-lock" connectors
- CARBO EO D-488-34
Fitment:
- 2010 Chevrolet Camaro 6.2L LS3 V8
- 2011 Chevrolet Camaro 6.2L LS3 V8
- 2012 Chevrolet Camaro 6.2L LS3 V8
- 2013 Chevrolet Camaro 6.2L LS3 V8
- 2014 Chevrolet Camaro 6.2L LS3 V8
- 2015 Chevrolet Camaro 6.2L LS3 V8
NOTES: Note that 2014 Camaro requires an aftermarket hood insert, as the factory SS insert interferes with the supercharger.
