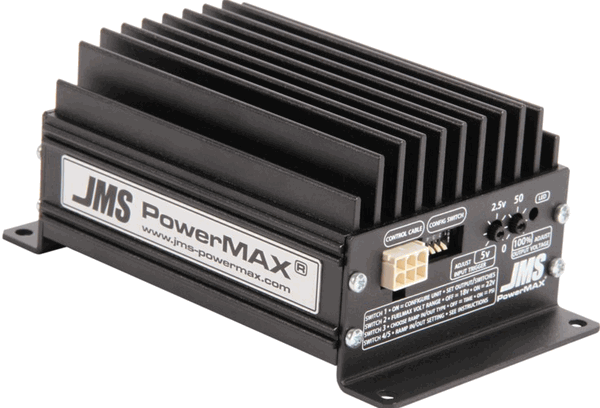

JMS PowerMAX FuelMAX - Fuel Pump Voltage Booster V2 - Universal Single Output (Activation - MAF/MAP/TPS or Ground)
Designed for 2010+ GM and Dodge vehicles or any other vehicle that powers the fuel pump controller AT ALL TIMES
PowerMAX - FuelMAX 21 Volt/44 AMP Universal Splice-In Voltage Booster
Increase the output of ANY fuel pump by up to 85%!!
Why replace your fuel pump?
Use PowerMAX to quickly and easily increase it's output!
Simple installation: PowerMAX splices into your existing fuel pump +12V DC feed wire.
Compatible with all 12V or 16V battery systems
Designed specifically for 2010+ GM and DCX vehicles: Camaro, Challenger, Corvette
High Quality User Adjustable Hobbs Switch: Preset @ 5psi, User Adjustable from 3psi to 7psi
Adjustable Voltage Ramp In / Ramp Out Time: Eliminate fuel pressure spikes!!
Green Status LED: Know at a glance what the unit is doing. Blinking LED:Boosting Voltage
Optional Remote Mounted Voltage Control Knob: Over-ride the voltage output when knob is connected (PM-2999)
Enable voltage boosting with ground or via a monitored 0-5v external sensor
Each PowerMAX Kit Contains: 44 Amp PowerMAX Voltage Booster, Wiring Harness, Installation Kit, Set of Instructions
Installation Kit Contains: 1 - Hobbs Switch Preset @ 5psi (user adjustable 3-7psi), 1 - Fitting 1/8npt Female to 3/16" Male Barb, 1 - Vacuum Tee 3/16" x 3/16" x 3/16", 1 - Vacuum Tee 1/4" x 1/4" x 3/16", 1 - Vacuum Tee 3/8" x 3/8" x 3/16", 1 Foot of 5/32" vacuum hose, 1 - 30amp mini-fuse, solder, 2 - 10/12gauge Heat Shrink Butt Splices, 2 - #8 stud 18/22gauge Heat Shrink Ring Terminals, 1 - 10 gauge Heat Shrink Ring Terminal, 6 - Zip Ties, 6 - Self drilling hex screws, mini screw driver
Designed for 2010+ GM and Dodge vehicles or any other vehicle that powers the fuel pump controller AT ALL TIMES
PowerMAX - FuelMAX 21 Volt/44 AMP Universal Splice-In Voltage Booster
Increase the output of ANY fuel pump by up to 85%!!
Why replace your fuel pump?
Use PowerMAX to quickly and easily increase it's output!
Simple installation: PowerMAX splices into your existing fuel pump +12V DC feed wire.
Compatible with all 12V or 16V battery systems
Designed specifically for 2010+ GM and DCX vehicles: Camaro, Challenger, Corvette
High Quality User Adjustable Hobbs Switch: Preset @ 5psi, User Adjustable from 3psi to 7psi
Adjustable Voltage Ramp In / Ramp Out Time: Eliminate fuel pressure spikes!!
Green Status LED: Know at a glance what the unit is doing. Blinking LED:Boosting Voltage
Optional Remote Mounted Voltage Control Knob: Over-ride the voltage output when knob is connected (PM-2999)
Enable voltage boosting with ground or via a monitored 0-5v external sensor
Each PowerMAX Kit Contains: 44 Amp PowerMAX Voltage Booster, Wiring Harness, Installation Kit, Set of Instructions
Installation Kit Contains: 1 - Hobbs Switch Preset @ 5psi (user adjustable 3-7psi), 1 - Fitting 1/8npt Female to 3/16" Male Barb, 1 - Vacuum Tee 3/16" x 3/16" x 3/16", 1 - Vacuum Tee 1/4" x 1/4" x 3/16", 1 - Vacuum Tee 3/8" x 3/8" x 3/16", 1 Foot of 5/32" vacuum hose, 1 - 30amp mini-fuse, solder, 2 - 10/12gauge Heat Shrink Butt Splices, 2 - #8 stud 18/22gauge Heat Shrink Ring Terminals, 1 - 10 gauge Heat Shrink Ring Terminal, 6 - Zip Ties, 6 - Self drilling hex screws, mini screw driver
