Description:

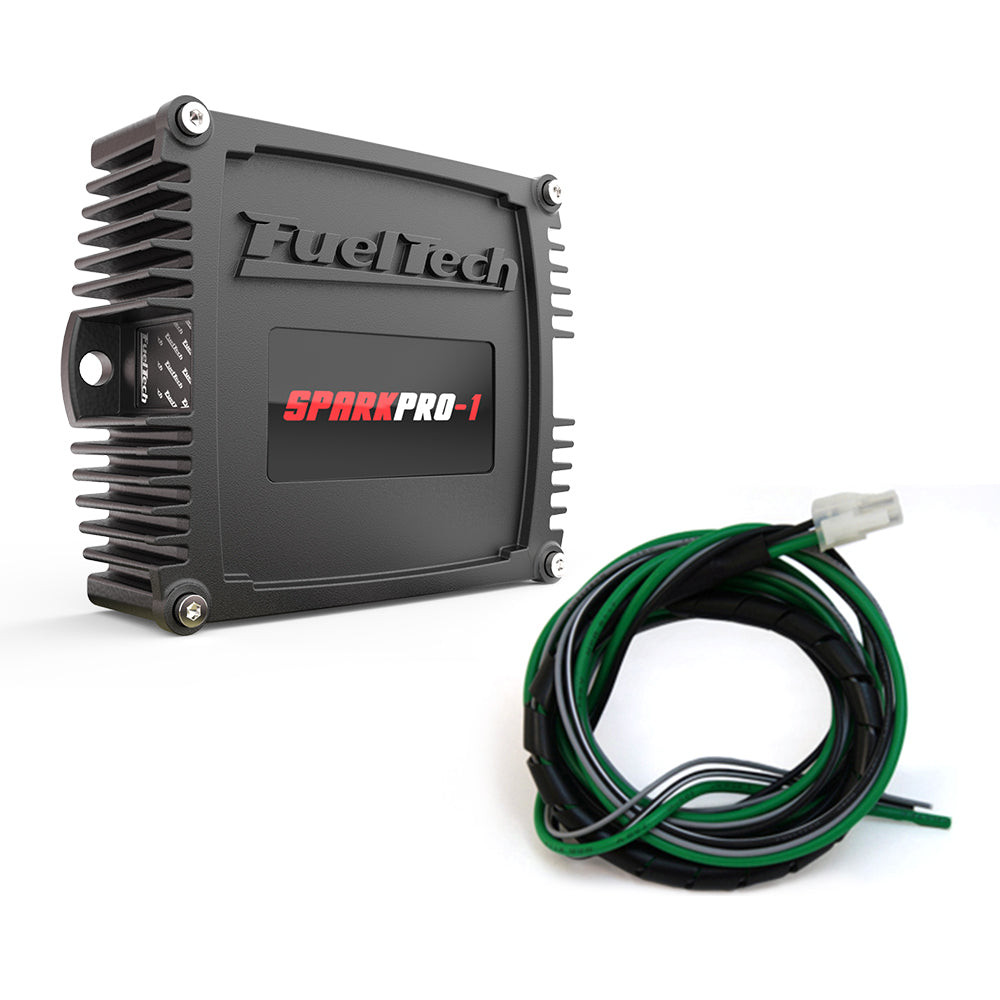

FuelTechs SparkPRO-1 is a high-energy inductive ignition module designed to be used with ignition coils without an igniter (dumb coils). The SparkPRO-1 has 1 ignition outputs, each output may be connected to only one coil at a time, and is available in versions from 1 to 8 ignition outputs. It has a high voltage of up to 430V at the coils primary. SparkPRO ignition modules are compatible with any programmable ECU that has dwell control but cannot be used with a stock ECU.
FEATURES
Only recommend for 4-cylinder applications running a distributor with a FuelTech ECU.
- High energy inductive ignition
- SparkPRO-1 - 1 ignition output
- Available in versions from 1 to 8 ignition outputs
- High Voltage at the coils primary: up to 430V
TECHNICAL DESCRIPTION
- Used only with dumb coils (coils without igniter)
- Each SparkPRO channel can be connected to only one coil at a time
- Compatible with any programmable ECU that has dwell control
- Cannot be used with stock ECU
- Dimensions: 115 x 90 x 33mm
CONTENTS OF PACKAGING
- 1 SparkPRO-1
- 1 Operation and installation guide
- 1 FuelTech black carbon fiber sticker
SparkPRO-1 Wiring Harness is sold separately.
Part Number: 3010003326
