Fore Innovations Fuel System Level 2 Triple Pump (1996-2004 Mustang) 55-532

• Fuel rails routed in SERIES
• Fuel pressure regulator installed AFTER the rails.

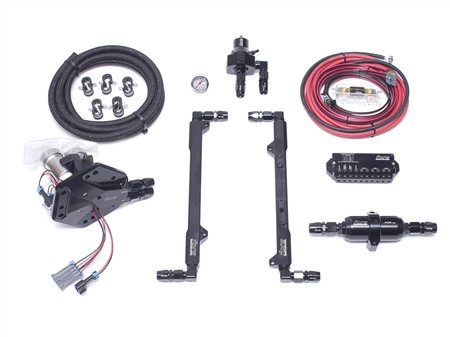

INCLUDES:

• SN95 Fuel Pump Module (triple pump)
• 88mm Inline Fuel Filter
• F2i Fuel Pressure Regulator
• SN95 2V Billet Fuel Rails
• All fittings, hose, and hardware necessary to complete typical fuel line plumbing:
• 35 feet of fuel line and 10 matching hose ends
• Qty 5, AN to o-ring straight fittings
• Qty 5, AN to o-ring 90 degree low profile fittings
• Qty 1, o-ring plug
• Qty 12, hose straps with stainless mounting screws
• Qty 2, 1/8 NPT plugs

This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.



Electrical Upgrade

None: base module configuration, 6" [150mm] of pump power wire protrude from top of hermetic seal



FC2 Controller with 6 gauge wiring:

- Operates both pumps simultaneously, using factory control

- Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only (due to fuel heat)

- May be used for control of secondary pumps with triple module IF [a small] primary pump can be run by OEM harness

- Includes 14' [4.2m] of 6 AWG power wire and 100 amp fuse

- Includes 3' [.9m] of 6 AWG ground wire with ring terminal

- Includes 7' [2.1m] 12 AWG pump leads and sealed Delphi connector at pump module



FC3 Staged Controller with 4 gauge wiring:

- Operates secondary pump(s) independently from primary pump using factory control in conjunction with a secondary trigger source.

- Best for controlling two or three large fuel pumps for street duty and minimizing heat

- Includes 14' [4.2m] of 4 AWG power wire and 100 amp fuse

- Includes 3' [.9m] of 4 AWG ground wire with ring terminal

- Includes 7' [2.1m] 12 AWG pump leads and sealed Delphi connector at pump module



Filtration Media

CELLULOSE FILTER ELEMENT

- cellulose element, bonded aluminum endcaps, Viton o-ring

- provides 10 micron nominal, 14 micron absolute filtration

- use with gasoline and race gas

- disposable

- recommended filtration for use with Injector Dynamics fuel injectors



MICROGLASS SSD (ANTI-STATIC) FILTER ELEMENT

- microglass element, static dissipating, bonded aluminum endcaps, Viton o-ring

- provides 12 micron absolute filtration

- use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)

- disposable

- recommended filtration for use with Injector Dynamics fuel injectors



STAINLESS FILTER ELEMENT

- stainless element, stainless endcaps, Viton o-ring

- provides 10 micron nominal, 26 micron absolute filtration

- use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)

-re-usable



Fuel Filter Upgrades

Upgrade to 128mm Filter

- Upgrade from standard 88mm filter to 128mm filter length for more filtration capacity and more time between service intervals.



Billet Mounting Bracket

- Use it to mount filter under car body, show quality installation to secure mounting of filter assembly for ease of maintenance



Filter Monitoring Gauge and Fitting

- Use to monitor fuel pressure before filter to inspect filter health. A higher pressure before filter indicates loss across the filter. If ignored, substantial filter obstruction will lead to reduced pump performance, shortened pump life, and higher fuel heat. Fitting is includes to allow precise orientation of pressure gauge.



System Options

Honeywell Pressure Switch for FC3

- 1/8 NPT Male threads, installs in intake manifold, must see boost and vacuum



Boost Vacuum Manifold Kit

- Our Boost / Vacuum manifold kit includes the following: Fore Innovations Boost / Vacuum Manifold (3 x 1/4" barb fittings, 4 x plugs)



Fuel Pump Warranty: Fore Innovations guarantees fuel pumps purchased from us operate according to the pump manufacturer's specification when new. After the pump(s) are placed into service, many variables beyond our control will dictate the lifespan and continued performance level of your fuel pumps. If you suspect your fuel pump(s) are damaged, Fore Innovations can help with diagnosis, corrective measures, and facilitation of replacement pump(s). However, only the original manufacturer of the fuel pump (such as TI Automotive, Walbro, etc.) will be able to evaluate whether or not you are eligible for a warranty claim due to a quality issue.
