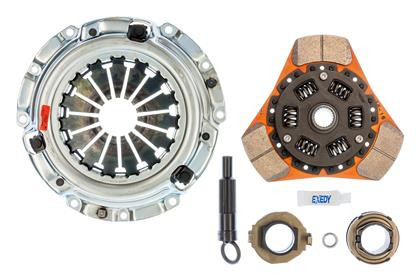

Exedy Stage 2 Cerametallic Clutch Kit 22 Spline (Mazda RX-7) 10955

Exedy cerametallic clutches are designed to handle the abuse of high power modified engines. Our cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading.

All Exedy Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain. We offer two types of cerametallic discs, thick and thin along with a cushion button disc.

Thick Disc

The thick discs have better heat capacity and therefore better durability in demanding applications. Even with the thick disc, three and four puck designs typically have less inertia than a stock disc and work well for street, rally and track use.

Thin Disc

The thin discs offer greatly reduced inertia to improve shift effort, allow for quicker shifting, and improve synchro durability. These discs are approximately half the thickness of a stock disc and are recommended for circuit track use only.

Cushion Button Disc

The remarkable Cushion Button Disc combines cerametallic button facing with marcel cushion springs to maintain comfortable driving while supporting a respectable amount of power. It’s smooth engagement is ideal for the street, and thanks to its heavy duty sprung hub dampening assembly, can handle the power of high torque motors. The Cushion Button Disc is currently available for limited applications, however more fitments will be released in the near future.

Clutch Cover

These clutch covers are designed to achieve a clamping load that is approx. 40 percent higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges.

All Exedy Racing Stage Ceremetallic Clutch Kits carry SFI 1.1 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.

Clamp Load: 1566

Disc Diameter: 8.9in. / 225mm

Spline Count: 22

Spline Size: 15/16in./24.3mm

Torque Capacity: 224 ft/lbs.

Application

• 04-11 3 L4 2.0/2.3

• 06-10 5 L4 2.3
