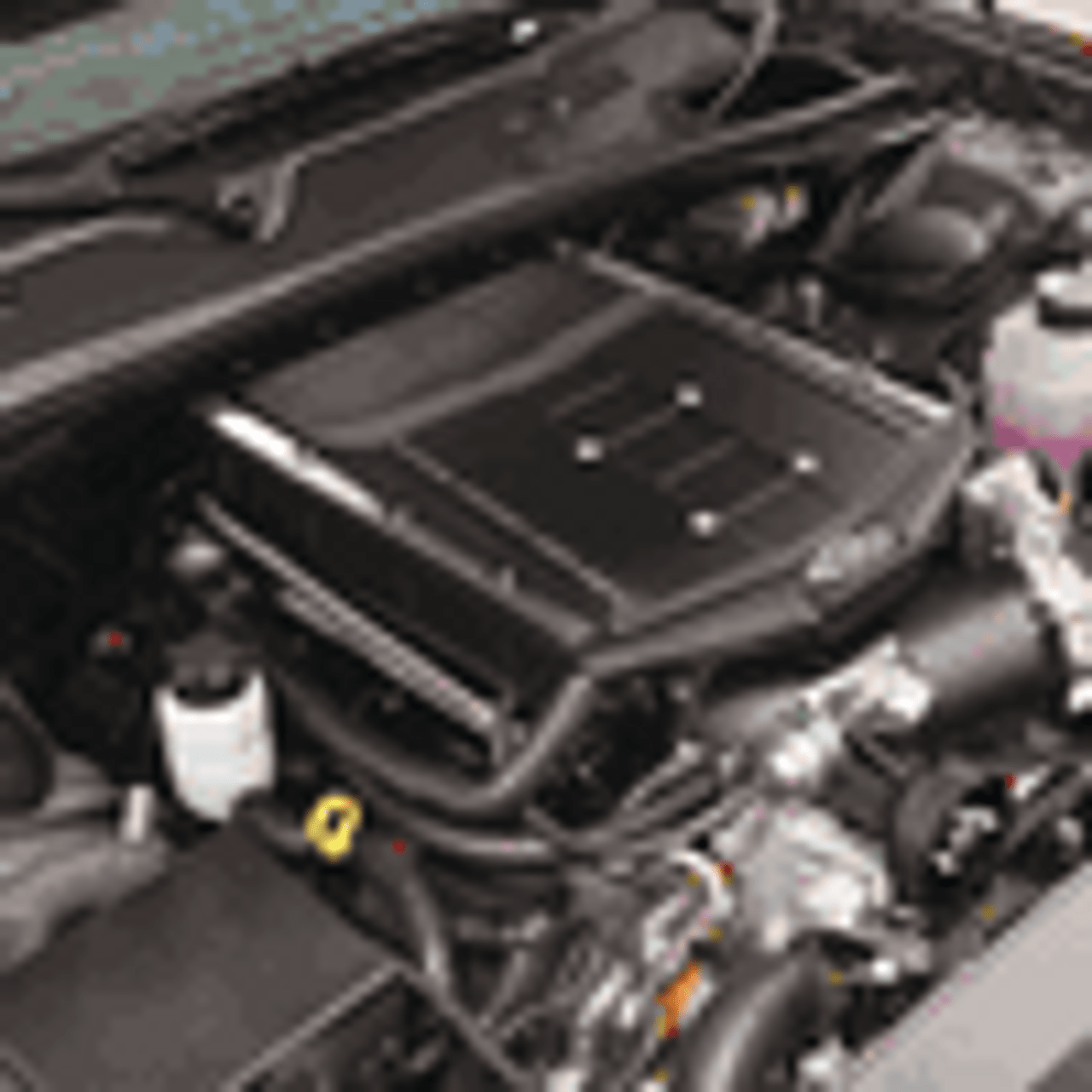

The Edelbrock E-Force Supercharger system part 15172 is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft/lb. of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an E-Force Supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS Supercharger rotating assembly with a four lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. They also designed the superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. The unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. **All 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification** Handheld programmer not included. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program, which can be downloaded at www.edelbrock.com. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting.
SPECS
| Manufacturer | Edelbrock |
|---|---|
| Application | Application Specific |
| UPC | 00085347151721 |
| System Type | Stage 1 - Street System |
| Vehicle Model | Challenger |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.25 in |
| CARB Executive Order Number | D-215-96 |
| Maximum Torque | 531RW (With 91 Octane) ft-lb |
| Fuel Injector Type | 60 lb/hr |
| Maximum Horsepower | 572RW (With 91 Octane) |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | EO Number: D-215-96 |
| Hazardous Materials Warning |  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
|
| Finish | Black Powder Coated |
| Inside Diameter | 1.251 in |
| Maximum Boost Pressure | 14 PSI |
| Outside Diameter | 3.875 in |
| Pulley Belt Width | 6-Rib |
| Universal Or Specific Fit | Specific |
CARB E.O # D-215-114
