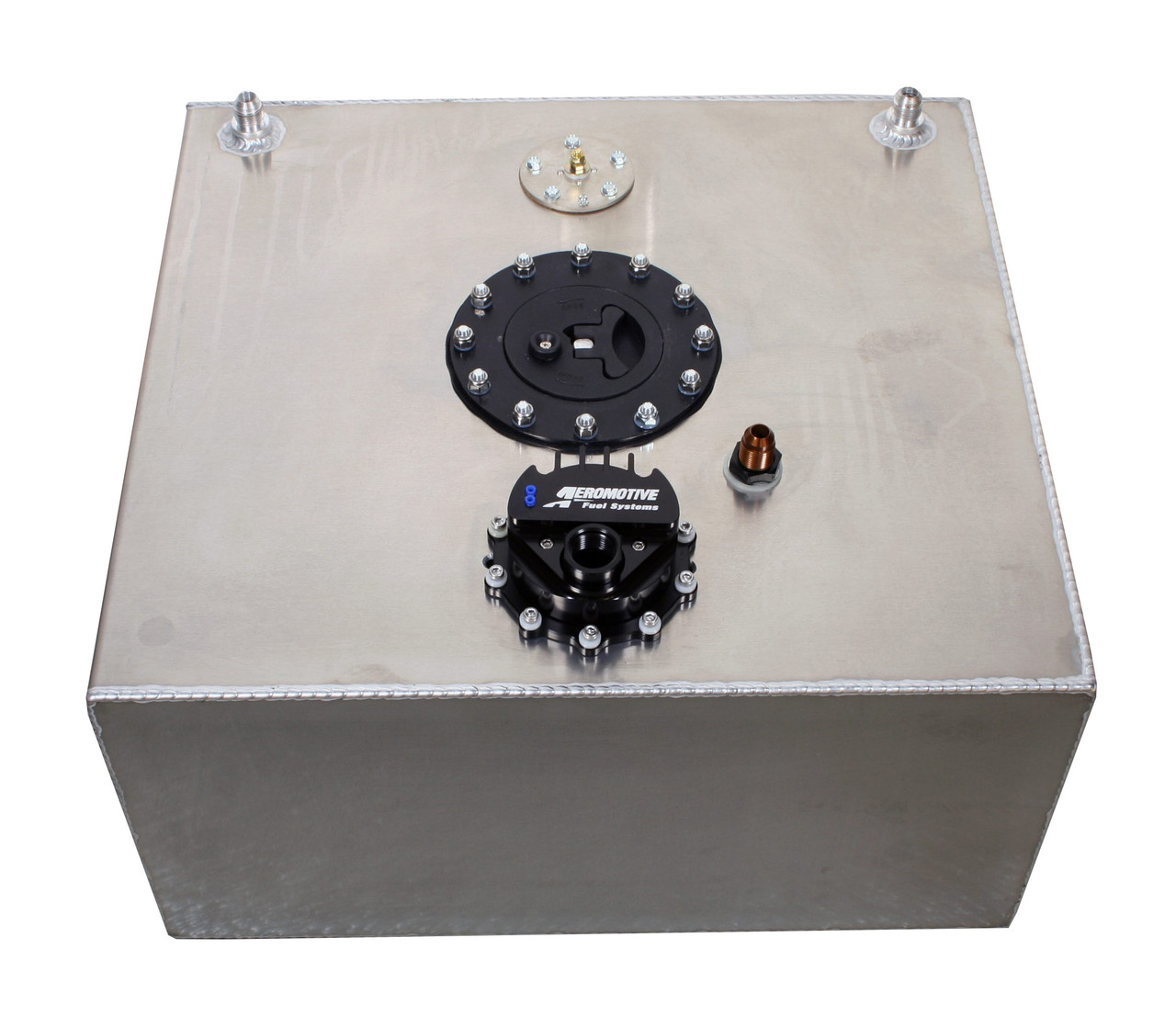

Aeromotive 5.0 Brushless Stealth Fuel Cell 15 Gallon 18372

15-gallon Racing Fuel Cell with 5.0 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent. This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the Mopar Drag Pack cars.



The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 5.0 Brushless Stealth Pump, the flagship of Aeromotive electric fuel pumps, yields 5 gallons per minute at 13.5-V and 40-PSI. Built for up to 90 psi of sustained pressure, this new pump features integral, internal Spur-Gear pumping mechanism which allows for higher pressures with minimal drop in flow. Aeromotive is proud to offer this new 5.0 Brushless Stealth Pump, which is the single, highest flowing electric fuel pump available on the market today.



Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability.



With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.



Features & Benefits

• Baffled design keeps fuel at the pump inlet

• Fluted pickup with integrated 100-m pre-filter

• Fuel Cell Dimensions: 20in. w x 18in. l x 10in. h

• E85 Compatible, reduce max FWHP by 30 percent

• Lighter than the traditional Pro-Series pump

• Reduced current draw at higher, EFI pressures

• Extended service life in methanol and ethanol

• New integral spur-gear pumping mechanism

• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability

• ORB-10 outlet port

• Requires straight 12-VDC to 16-VDC power supply

• Not compatible with pulse modulated systems or fuel pump speed controllers

• EFI Rated flow of 1,250 lbs./hr. at 40 psi, 13.5 volts

• Carb Rated Flow of 1,350 lbs./hr. at 9 psi, 13.5 volts
