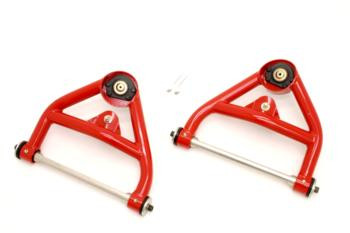

BMR A-Arms Upper Non-Adj Poly Bushings Red (70-81 F-Body/75-79 X-Body) AA015R

A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing with DOM cross braces for extra strength, deflection is eliminated with A-arms from BMR Suspension. BMR’s AA015 Upper A-arms are equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops, and new upper ball joints are included. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR’s bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR’s AA015 Upper A-arms eliminate deflection, greatly improving steering feel and response in normal and performance driving situations. The compact design provides additional header clearance over stock A-arms, allowing you to run larger primary tubes for high-horsepower applications. The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, and handling, and pro-touring applications. These A-arms give you improved geometry and increased lateral grip during cornering situations. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspension’s range of motion.

Features:

• Fits 1970-1981 GM F-Body

• Eliminates upper A-arm deflection

• Improves steering feel and response for normal and performance driving

• Increased high-speed stability

• Fixture welded for precise fit

• Dual-offset cross-shafts

• Shorter overall arm length

• Requires less shim stack for negative camber than OE arms

• Internally fluted, high durometer polyurethane bushings

• Adds additional headers clearance

• Pre-assembled with new polyurethane bumpstops

• Includes new upper ball joints

• Durable powdercoat finish
