Procharger Crank Support (2011-2023 Mustang GT / 2011-2023 F-150) 2FWSU-003

Image is a representation of this item.
Actual item may vary.

Item#:
2fwsu-003
$775.00
Regular price: $891.25
Sale price: $697.50
(You save $77.50 )
(No reviews yet) Write a Review

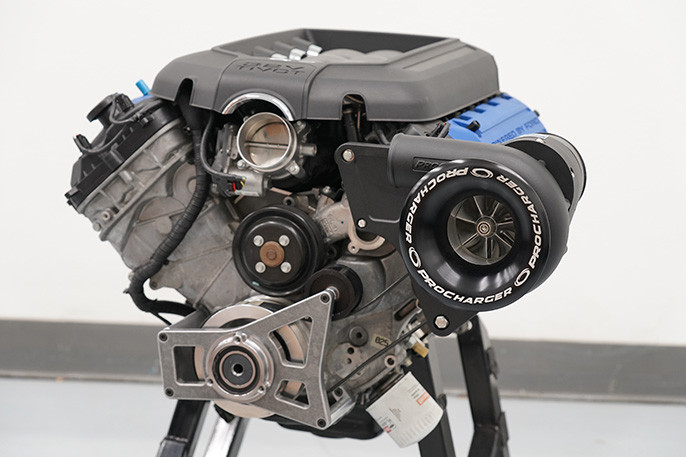

Is the crank support absolutely mandatory? No really, but consider it cheap insurance with the Coyote engine, just like billet oil pump gears.  More boost and rpm mean more load on the crank snout—in high boost/high-horsepower applications in a racing situation, the fragility of the stock crank comes into question and the snout has been known to break. And it's not just supercharged cars either—even turbocharged applications have experienced crank failure under high-stress situations. Thankfully for those running a ProCharger, we have a cost effective piece that will help support the crankshaft at elevated HP levels.

For the 2015-and later Mustang, ProCharger’s base kit uses a P-1SC-1 supercharger head unit and an air-to-air intercooler set at 8 psi of boost that adds 300+ horsepower to the Coyote. That’s a ton of extra power, but for the power-hungry fans that want even more power than that, there is a Stage II kit with a dedicated drive system, bigger intercooler, and a vast range of supercharger head units from the P-1SC-1 to F-1R and that level of power can highlight the weak point with the Coyote’s crankshaft.

INSTALLATION IS A PIECE OF CAKE!

It does require you run an Innovator’s West or ATI damper and it also requires an 8- or 10-rib Stage 2 drive system. The crank support clears all stock accessories but it doesn’t clear the stock swaybar—if you’re running skinny front drag tires, you don’t need the sway bar anyway. The brackets and Bolt locators are all doweled, so once installed the ProCharger crank snout upgrade solidly holds your crankshaft in place and eliminates the movement that can cause breakage.




Notes*
Crank Support requires removal of front sway bar.
Crank Support requires ATI or Innovators West Balancer
Crank Support is for Stage 2 kits only, including tuner kits, complete kits, and Beefcake Specials.

Crank Pulley Options:
- 2018+ 7.65" CRANK PULLEY - ATI DAMPER -BEFORE 4/30/20
2015+ 8.00" CRANK PULLEY - ATI DAMPER-BEFORE 4/30/20
2015+ 8.00" CRANK PULLEY - INNOVATORS DAMPER



Fitment:
2011 Mustang GT
2012 Mustang GT
2013 Mustang GT
2014 Mustang GT
2015 Mustang GT
2016 Mustang GT
2017 Mustang GT
2018 Mustang GT
2019 Mustang GT
2020 Mustang GT
2021 Mustang GT
2022 Mustang GT
2023 Mustang GT
2011 F-150
2012 F-150
2013 F-150
2014 F-150
2015 F-150
2016 F-150
2017 F-150
2018 F-150
2019 F-150
2020 F-150
2021 F-150
2022 F-150
2023 F-150
