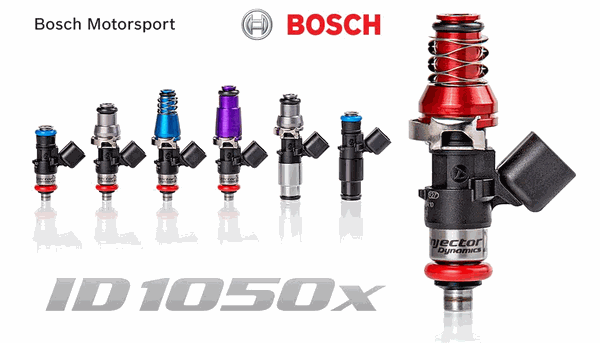

Injector Dynamics ID1050-XDS Fuel Injectors EV6 (07-14 Shelby GT500/Dodge Hemi) 1050.48.14.14.8

The Injector Dynamics ID1050-XDS is the latest addition to the X Series, a line of injectors designed and built in partnership with Bosch Motorsport. The X Series injectors are not modified production parts, they are a true motorsport injector. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner.



Applications

Ford 2007-2014 Shelby GT500

Dodge Hellcat

SRT8 Hemi Cars - 300C, Magnum, Challenger



Features

• Compatible with all fuels, and capable of extended service life with highly corrosive fuels.

• Shares the same compact body as the ID1300-XDS, and ID1700-XDS, allowing fitment in the greatest number of applications

• Replaceable inlet screen, unlike the standard captured non replaceable filter that does not always respond well to ultrasonic cleaning.

• Improved magnetic circuit (The same as the ID1300-XDS) which allows for stable operation at high pressure, extending the useful flow range of the injector.

• For extreme applications, the ID1050-XDS can be run as high as 10 bar (145 psi)

• Improved flow path, increasing flow approximately 5% over the ID1000, with no reduction in low flow capabilities.



Specifications

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)

Fuel Compatibility – Compatible With All Known Fuels

Electrical Connector – USCAR
